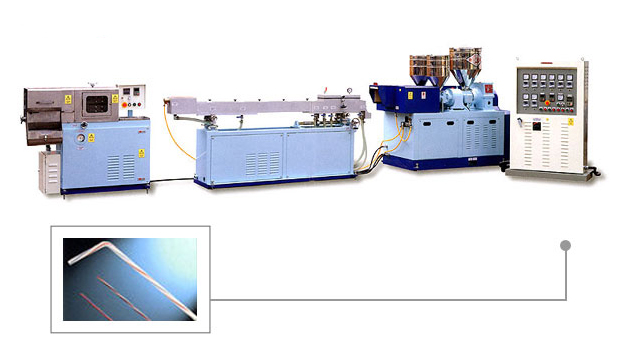

JS 284S/3V PP STRAW MAKING MACHINE
(maquina para sorbete, pitillo, popote, pajita, canudo)
NOW, a Straw Making Machine that delivers all the levels of quality and reliability that you deserve.
Enjoy all new levels of straw production performance with the JS 284-S/3V. This PP Straw Making machine from JUMBO STEEL achieves the highest levels of productivity and performance through its superior construction. It has been specially designed and engineered to combine many fine features in a single unit.
AVAILABLE :
- Lollipop stick making machine.
Model : JS 284/VL series & JS 285/VL series. - Ball pen re-fill making machine.
Model : JS 284/RF series. - Cotton bud stick making machine.
Model : JS 284/CB series.
CUTTING UNIT
This unit can produce both sharp end straws, cutting two pieces at a time,
and straight endstraws, cutting one piece at a time.
This unit can produce both sharp end straws, cutting two pieces at a time,
and straight endstraws, cutting one piece at a time.
QUALITY CONSTRUCTION THROUGHOUT :
- The gears are precision ground and hardened to ensure smooth and quiet operation. The high precision bearings provide and extremely smooth and long lasting running performance.
- The screw, manufactured from Aluminum Chromolybdenum alloy steel(SACMI), is stress relieved, precision ground and nitride treated for a long service life.
- The barrel, manufactured from Aluminum Chromolybdenum alloy steel(SACMI), is stress relieved precision ground and nitride treated for a long service life.
- The stainless steel (S410) die undergoes nitride hardening treatment for a long service life.
- The water tank is constructed of stainless steel # 304
- The water stirage tank is power adjusted transversely and manually adjusted vertically to ensure convenient take-up and die-change.
- The easy to change, two-die system provides a straw diameter range from 3.8mm to 8mm with easy adjustment of thickness.
- High production rates for JS 284.
800-1200 pcs/min for 120mm sharp end straws.
300-500 pcs/min for 210mm straight straws. - Variable straw length, 100mm-300mm, can be easily adjusted when the machine is running.
- The belt type take-up unit ensures and even stabilizing speed and prevents straw slippage during take-up operations.
- The toothed belt transmission incorporated with a DC motor ensures great stability for precision cutting and straw length accuracy.
- The cutting unit can produce both sharp end and straight straws.
HELICAL STRIPES
Rotation angle of convey or belt type take off unit is adjustable for convenient operation.
Rotation angle of convey or belt type take off unit is adjustable for convenient operation.
CENTRALIZED CONTROL PANEL
All the machines controls are located in a centralized
panel for maximum convenience of operation.
The control panel offers a wide range of major functions, including :
- Amp meter-indicating the screw load.
- Digital display of temperature.
- Speed indication.
All the machines controls are located in a centralized
panel for maximum convenience of operation.
The control panel offers a wide range of major functions, including :
- Amp meter-indicating the screw load.
- Digital display of temperature.
- Speed indication.
CUTTING UNIT
This unit can produce both sharp end straws, cutting two pieces at a time,
and straight end straws, cutting one piece at a time.
A cutting cotton rod is available upon request.
This unit can produce both sharp end straws, cutting two pieces at a time,
and straight end straws, cutting one piece at a time.
A cutting cotton rod is available upon request.
VACUUM FORMING DEVICE
This vacuum forming device, used in conjunction with a stabilizing shaft,
ensures the perfect concentricity of the straws.
This vacuum forming device, used in conjunction with a stabilizing shaft,
ensures the perfect concentricity of the straws.
SPECIFICATIONS :
| MODEL | JS 284/2V | JS 284S/3V | ||
|---|---|---|---|---|
| Feature | Material | P.P. | P.P. | |
| Color | 2 | 3 | ||
| Stripes | Straight | Straight & Helical | ||
| Straw dia. | Ømm | Ø3.8 - Ø8.0 | Ø3.8 - Ø8.0 | |
| Straw Length | mm | 100 - 300 | 100 - 300 | |
| Capacity | pcs/min | 300 - 500 | 300 - 500 | |
| Extruding Output Range | kg/hr | 10 - 20 | 10 - 20 | |
| Extruder | Screw dia. | Ømm | 45 x 1.25 x 1 | 45 x 1, 25 x 2 |
| Screw L/D | 25 : 1 | 25 : 1 | ||
| Driving Motor | hp | VS 10 x 1, DC 1 x 1 | VS 10 x 1, DC 1 x 2 | |
| Automatic Thermo-Controller | set | 6 | 8 | |
| Vacuum Water Tank |
Vacuum Forming Device | set | 1 | 1 |
| Vacuum Pump & Motor | hp | 1/2 | 1/2 | |
| Water Storage Tank | set | 1 x 2.5 M | 1 x 2.5 M | |
| Take Up & Cutting Unit |
Pulling Belts | set | 1 | 1 |
| Motor | hp | DC 2 x 1 set | DC 2 x 1 set | |
| Cutting Knife | set | 1 | 1 | |
| Conveyor | set | - | - | |
| Others | Total Electricity Used | kw | 20 | 24.18 |
| Dimension LxWxH | m | 7.03 x 1.73 x 1.47 | 7.9 x 1.15 x 1.47 | |
| Machine Weight | ton | 1.5 | 1.8 | |
* All specifications and design characteristics are subject to change without prior notice.
