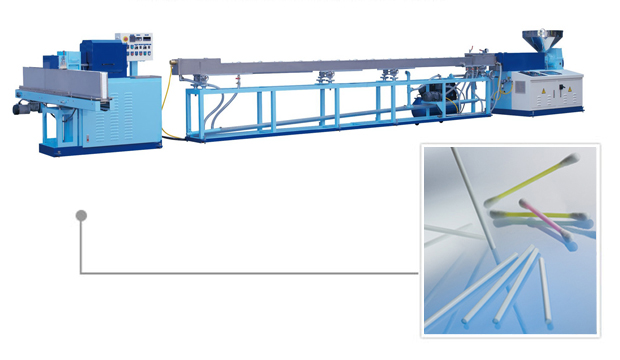

JS 284/VCBA Cotton Bud Stick Making Machine
SPECIFICATIONS :
| MODEL | JS 284/VCBA | ||
|---|---|---|---|
| Feature | Material | P.P. | |
| Color | 1 | ||
| Product Outer Diameter | mm | Ø2.5 | |
| Product Length | mm | 72 ± 0.5 mm | |
| Product Length | pcs/min | 2500 - 3000 (100pcs/15g) | |
| Extruding Output Range | kg/hr | 20 - 26 | |
| Extruder | Screw dia. | mm | Ø45 |
| Screw L/D | 25 : 1 | ||
| Driving Motor | hp | AC 10 HP + Inverter | |
| Automatic Thermo-Controller | set | 4 | |
| Vacuum Water Tank |
Vacuum Forming Device | set | 1 |
| Vacuum Pump & Motor | hp | 1/2 | |
| Water Storage Tank | set | 1 set (6M) | |
| Take Up & Cutting Unit |
Take Up Unit | set | Belt type, 1 set |
| Motor | hp | AC 2 HP with Inverter, with brake clutch | |
| Control Panel | set | 1 | |
| Cutting Wheel | pc | 1 pc with 2 blades | |
| Converting Wheel | set | 1 | |
| Motor For Collection | hp | 1/8 | |
| Collection Box | pc | 3 pcs, Stainless steel made | |
| Others | Dimension LxWxH | m | 9.5 x 2.55 x 1.5 |
* All specifications and design characteristics are subject to change without prior notice.
