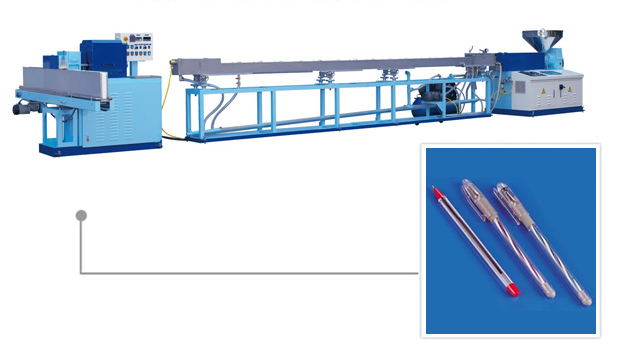

JS 284/VRF (Pen Refill Stick Making Machine)
SPECIFICATIONS :
| MODEL | JS 284/VRF | ||||
|---|---|---|---|---|---|
| Feature | Material | P.P. | |||
| Color | 1 | ||||
| Product Outer Diameter | mm | 3.05mm ± 0.05mm | |||
| Product Length | mm | 128mm ± 0.10mm | |||
| Product Length | pcs/min | 300-550 pcs/min | |||
| Extruding Output Range | kg/hr | 10 – 20 kg/hr | |||
| Extruder | Screw dia. | mm | Ø45 | ||
| Screw L/D | 25 : 1 | ||||
| Driving Motor | hp | AC 10 HP + Inverter | |||
| Automatic Thermo-Controller | set | 4 | |||
| Vacuum Water Tank |
Vacuum Forming Device | set | 1 | ||
| Vacuum Pump & Motor | hp | 1/2 | |||
| Water Storage Tank | set | 1 set (6M) | |||
| Take Up & Cutting Unit |
Take Up Unit | set | Belt type, 1 set | ||
| Motor | hp | AC 1/2 HP with Inverter | |||
| Control Panel | set | 1 | |||
| Cutting Wheel | pc | 1 set | |||
| Converting Wheel | set | 1 | |||
| Others | Dimension LxWxH | m | 7.03 x 1.27 x 1.64 | ||
* All specifications and design characteristics are subject to change without prior notice.
