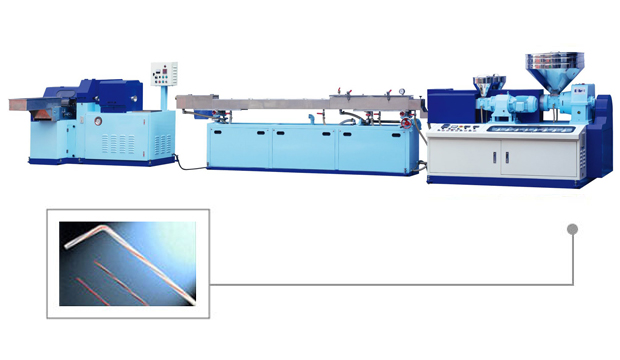

JS 285S/3V HIGH SPEED PP STRAW MAKING MACHINE
HIGH SPEED PRODUCTION : 1000pcs/min.
CE, UL model is available.
Option : autoloader, hopper dryer, hydraulic screen changer.
Longer water tank, double vacuum devices, combined with double sides support assures excellent cutting quality.
QUALITY CONSTRUCTION THROUGHOUT :
- The gears are precision ground and hardened to ensure smooth and quiet operation. The high precision bearings provide and extremely smooth and long lasting running performance.
- The screw, manufactured from Aluminum Chromolybdenum alloy steel (SACMI), is stress relieved, precision ground and nitride treated for a long service life.
- The barrel, manufactured from Aluminum Chromolybdenum alloy steel (SACMI), is stress relieved precision ground and nitride treated for a long service life.
- The stainless steel (SUS410) due undergoes nitride hardening treatment for a long service life.
- The water tank is constructed of stainless steel, #304.
- The water storage tank is power adjusted transversely and manually adjusted vertically to ensure convenient take-up and die-change.
- The easy to change, two-die system provides a straw diameter range from 3.8mm to 8mm with easy adjustment of thickness.
- High production rates for JS 284.
800-120 pcs/min for 120mm sharp end straws.
300-500 pcs/min for 210mm straight straws. - Variable straw length, 100mm~300mm, can be easily adjusted when the machine is runing.
- The belt type take-up unit ensures an even stabilizing speed and prevents straw slippage during take-up operations.
- The toothed belt transmission incorporated with a DC motor ensures great stability for precision cutting and straw length accuracy.
- The cutting unit can produce both sharp end and straight straws.
HELICAL STRIPES
Taiwan Patent : 140559 & 94313
Taiwan Patent : 140559 & 94313
HELICAL STRIPES
Rotation angle of convey or belt type take off unit is adjustable for convenient operation.
Rotation angle of convey or belt type take off unit is adjustable for convenient operation.
CUTTING UNIT
Double sides support assures excellent cutting quality.
Easy collection from conveyor.
Double sides support assures excellent cutting quality.
Easy collection from conveyor.
VACUUM FORMING DEVICE
This vacuum forming device, used in conjunction with a stabilizing shaft,
ensures the perfect concentricity of the straws.
This vacuum forming device, used in conjunction with a stabilizing shaft,
ensures the perfect concentricity of the straws.
SPECIFICATIONS :
| MODEL | JS 286/H2V | |
|---|---|---|
| Feature | Material | PP |
| Color | 2 | |
| Stripes | Straight & Stripe | |
| Product Diameter | φ5 - 8 mm | |
| Product Length | 200-270 mm | |
| Capacity | 250 - 360 m/min (depends on straw length, thickness, dia) |
|
| Extruding Output Range | 40 - 65 kg/hr | |
| Extruder | Screw | φ65 / φ35 mm |
| Screw L/D | 25 : 1 | |
| Driving Motor | AC 20hp + Inverter x 1, AC 1hp + Inverter x 1 | |
| Auto Temperature Controller | 7 sets | |
| Vacuum Water Tank |
Vacuum Forming Device | 1 set |
| Vacuum Pump & Motor | 1/2 hp | |
| Water Storage Tank | 1 set x 5.5m | |
| Take Up & Cutting Unit |
Pulling Belts | 1 set |
| Motor | AC 1hp + inverter*1, AC 2 hp + inverter*1 | |
| Cutting Knife | 1 set | |
| Conveyor | 1 set | |
* All specifications and design characteristics are subject to change without prior notice.
