PVC SHRINKABLE FILM PRODUCTION EQUIPMENT
(PVC HEAT SHRINKABLE FILM MAKING MACH)
PVC Shrinkable file offer many excellent benefits, such as glossiness, high transparency, durability, water resistance and easy control of shrinkage. They have been applied to a wide variety of product packaging, such as foodstuff, beverage bottles, sporting goods, etc.
For over 20 years, Jumbo Steel has dedicated itself to the research of production technology for PVC shrinkable film. We have made great improvements in product prescription and machine performance, upgrading the quality and efficiency of PVC shrinkable films.We have a strong background and engineering experience for whole-plant planning and equipment supply. Jumbo Steel PVC shrinkable film production equipment has been sold worldide, and has earned a reputation for its superior machine and outstanding production know-how.
In addition to supplying the most dependable machinery, we also place emphasis on the technological support and complete production upgrades. This allows our customers to start up or resume production very quickly.
Jumbo Steel has a proven tradition of pursuing excellence and improving the PVC Shrinkable Film industry, and it will continue to develop its engineering capabilities and raise industry standards.
JS 3820H / JS 384

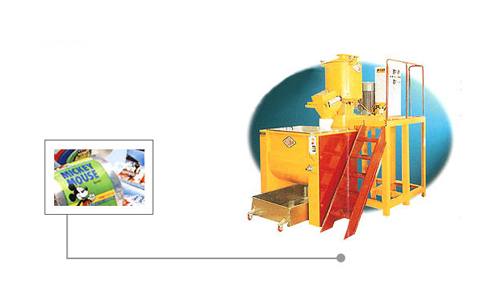

JS 3820H HIGH SPEED MIXER
- Capacity : 200 L / 10 - 15 min
- 2 sets of temperature controller to contril the chemical feeding
JS 384 COOLING STIRRER
- Capacity : 400 L
- Auto or manual control for material outlet
JS 335S / JS336S
JS 335S / JS336S PVC HEAT SHRINKABLE FILM MAKING MACHINE
- HEATER TANK, FOR MAKING SHRINKABLE PACKING FILM
- Screw dia : 65 mm
- Layflat width : 150 - 500 mm
- Output : 15 - 30 kg/hr
JS 33

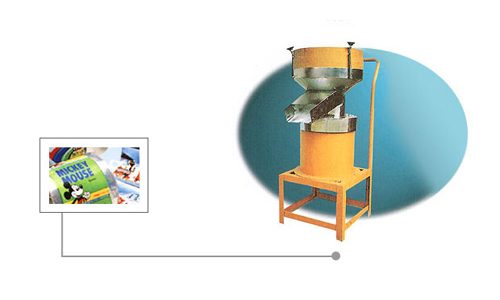

JS 33 VIBRO-ENERGY SEPARATOR & FILTER
JS 298 / 7C

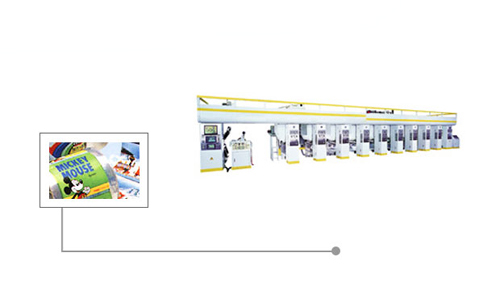

JS 298 / 7C ROTOGRAVURE PRINTING PRESS
- Printing speed : 120 M/min
- Optional accessories :
- Auto color register
- lnk circulation pump
- Video web inspection system
- Printing width and color up on request
JS SL1000

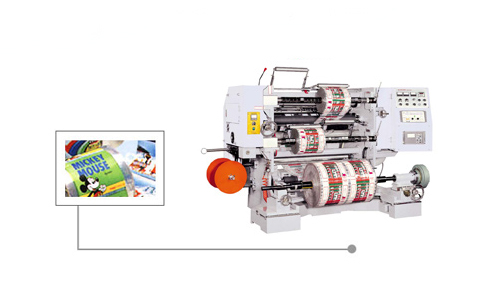

JS SL1000 SLITTING MACHINE
| MODEL | JS SL1000 |
|---|---|
| Unwind Width | 300 - 1000 mm |
| Unwind Diameter | 700 mm |
| Rewind Width | 50 - 1000 mm |
| Rewind Diameter | 450 mm |
| Core Diameter | 3" |
| Machine Speed | 0 - 250 m/min |
| Power | 200 V, 380 V, 440 V, 3- Phase. 50/60 HZ |
| EPC | 1 set |
| Unwind Auto. Tension Controlle | 1 set |
| Air Unwind Shaft | 1 set |
JS 3250P
JS 3250P CENTER - SLITTING MACHINE
| MODEL | JS 3250P |
|---|---|
| Machine Speed | 0 - 200 m/min |
| Unwind Roll Width | 620 mm |
| Width Of Product | 50 - 200 mm |
| Unwind Dia. | 450 mm |
| Rewind System | Paper core 3", 5", 10" |
| Rewind Dia. | 700 mm (Max) |
| Voltage | 220 V, 2- Phase. 50/60 HZ |
| Counter | 1 set |
| Edge Position Controller (EPC) | 1 set |
JS RD250
JS RD250 RE-REELING & DOCTOR MACHINE
| MODEL | JS RD250 |
|---|---|
| Sealed-Tube Width | 50 - 300 mm (Max) |
| Inspected Tube Width | 300 mm (Max) |
| Sealed Tube Web Diameter | 700 mm (Max) |
| Inspected Tube Web Diameter | 700 mm (Max) |
| Core Diameter (Size By Request) | 3", 5", 10" |
| Machine Speed | 0 - 200 m/min |
| Voltage | 220 V, 380 V, 440 V, 3- Phase. 50/60 HZ |
| Air Unwind Shaft | 5", 1pc |
JS 3310
JS 3310 CUTTING MACHINE
| MODEL | JS 3310 |
|---|---|
| Model Capacity Available | 350, 400, 500 mm |
| Cutting Width | 50 - 300 mm (Max) |
| Unwind Diameter | 600 mm (Max) |
| Cutting Length | 400 mm (Max) |
| Nside Dia. Of Unwind | 3", 5", 10" paper (by request) |
| Machine Speed | 30 - 250 pcs/min |
| Power | 220 V, 2- Phase. 50/60 HZ |
| Special Knife Type A | (A) 200 mm lenght (1 set) |
| Special Knife Type B | (B) 200 mm lenght (1 set) |
| Vertical Continuous Perforation Device | 1 set |
JS 2023

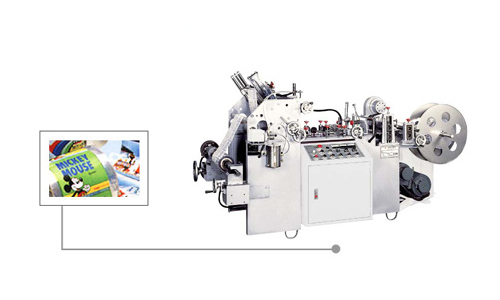

JS 2023 CONTRACTION BAG SEALING & CUTTING MACHINE
- Cutting width : 50 - 600 mm.
- Cutting length : 130 - 700 mm.
- Working speed : 20 - 80 pcs / min / per line
- Standard accessories :
- Temperature controller : 2 sets
- Qty-ress & Accumlator : 2 sets
- Auto feeding devive : 1 set
- Product converying device : 1 set
- Static-eliminator : 1 sets
- Sealing copper mold : 2 sets
- Cutting knife : 1 sets
JS 2500

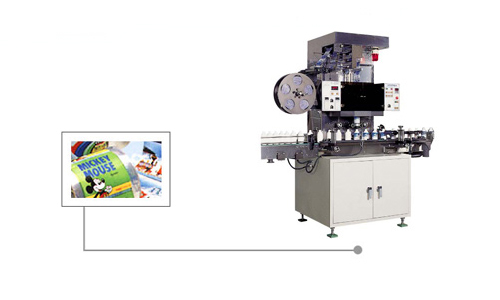

JS 2500 AUTO SHRINKABLE LABLE INSERTING MACHINE
- Speed : 80 - 250 pcs/min
- Bottle dia. : 45 - 120 mm
- Cut length : 40 - 250 mm
- Label thickness : 0.035 - 0.0.75
- Please offer label and bottle for proposing machine
* All specifications and design characteristics are subject to change without prior notice.
